W3RJW's FTDX-5000/FTdx-3000 Audio EQ Settings

Heil Mike Wiring

W3RJW 2/12

Yaesu FTDX-5000/FTdx-3000

For Heil GM-5.1 'Wide' and PR-781
FTdx-5000
FTdx-5000
104 TX BPF 300-2700
161 PE1 FRQ 300
162 PE1 LVL -15
163 PE1 BW 6
164 PE2 FRQ 700
165 PE2 LVL 0
166 PE2BW 5
167 PE3 FRQ 2300
168 PE3 LVL +10
169 PE3 BW 2
PROC 40
MIC 33
104 TX BPF 300-2700
161 PE1 FRQ 200
162 PE1 LVL -15
163 PE1 BW 2
164 PE2 FRQ 900
165 PE2 LVL 3
166 PE2BW 2
167 PE3 FRQ 2200
168 PE3 LVL +10
169 PE3 BW 1
PROC 40
MIC 33

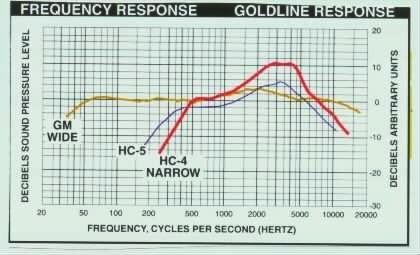

HC-6 Frequency Response

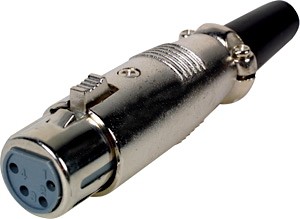

Heil XLR
Yaesu Mike
 Un-Balanced
1
7
 Mic Grd/Shield/Shell
2
8
 Mic
3
6
 PTT
4
5
 Grd
FTdx-3000
104 TX BPF 300-2700
168 PE1 FRQ 100
169 PE1 LVL -15
170 PE1 BW 2
171 PE2 FRQ 800
172 PE2 LVL -8*
173 PE2BW 2
174 PE3 FRQ 2300
175 PE3 LVL +10
176 PE3 BW 1
PROC 50
MIC 25
Note *

FTdx-3000 seems to have an ALC meter overshoot indication if you try to turn up the compression to a reasonable value (say +5dB) ..... In my case -8 to -10 dB of attenuation in the middle audio band tended to improve the problem.
